A new generation marks a new beginning.
The Artist Series encourages creators to express themselves in an authentic way and courageously pursue their dreams. The New Series comes with multiple sizes and colors. Powered by X3 Smart Chip technology, opens more possibilities for your creativity.
Set off on your CG journey with X3 smart chip
The new Artist series brings an immense leap to the stylus drawing experience with the new X3 chip, giving you the realistic feeling of traditonal pen and paper. Explore a brand new CG world with the X3 chip technology.
Natural color display for realistic creation
A wide color gamut of 130% sRGB* sees full color presentation and delicate detail expression. Colors are vividly brought to life under your brush.
Anti-glare screen
The matte eye-protective screen blocks the light interference from the environment, allowing you to focus on creation without distractions.

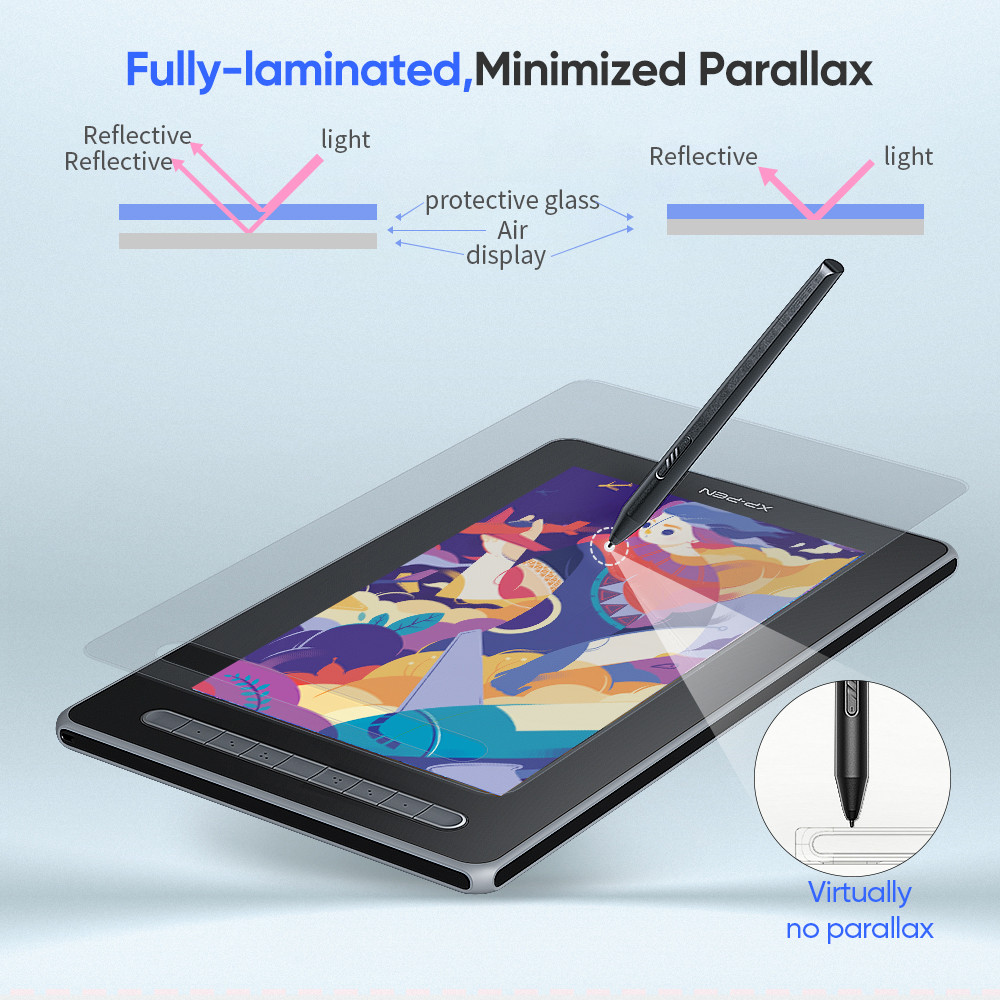

No parallax error
Full lamination screen technology. The screen and display are seamlessly laminated to avoid parallel errors between the stylus nib and cursor, precisely positioning every single one of your strokes.
Comfortable touch experience
Paper-like surface texture renders a natural experience of traditional drawing.
Easy portability for unlimited creativity release
Simplified design comes along with easy portability for you to bring it out in a backpack. Release your creative inspirations anytime anywhere.
Multi-function screen conveys multiple applicable uses
Extend screen display and screen projection covering multiple uses including creation, games, movies and entertainment, etc.
One-click drawing display and tablet switch in seconds
Long press the power button for 3 seconds, it will flash in blue and orange alternately. When the screen is off, the display will switch into a drawing tablet, giving you an additional drawing option.
Flexible dual ports
The 3-in-1 cable that supports HDMI signal transmission allows you to connect the drawing display to a PC. The full-featured USB-C port makes connection easier with devices such as PCs and Android phones, and Switch, allowing for a tidy desktop.
| Product Name | Artist 13 Drawing Display (2nd Gen) |
| Product Model | CD130FH |
| Color Options | Black, blue, green, pink |

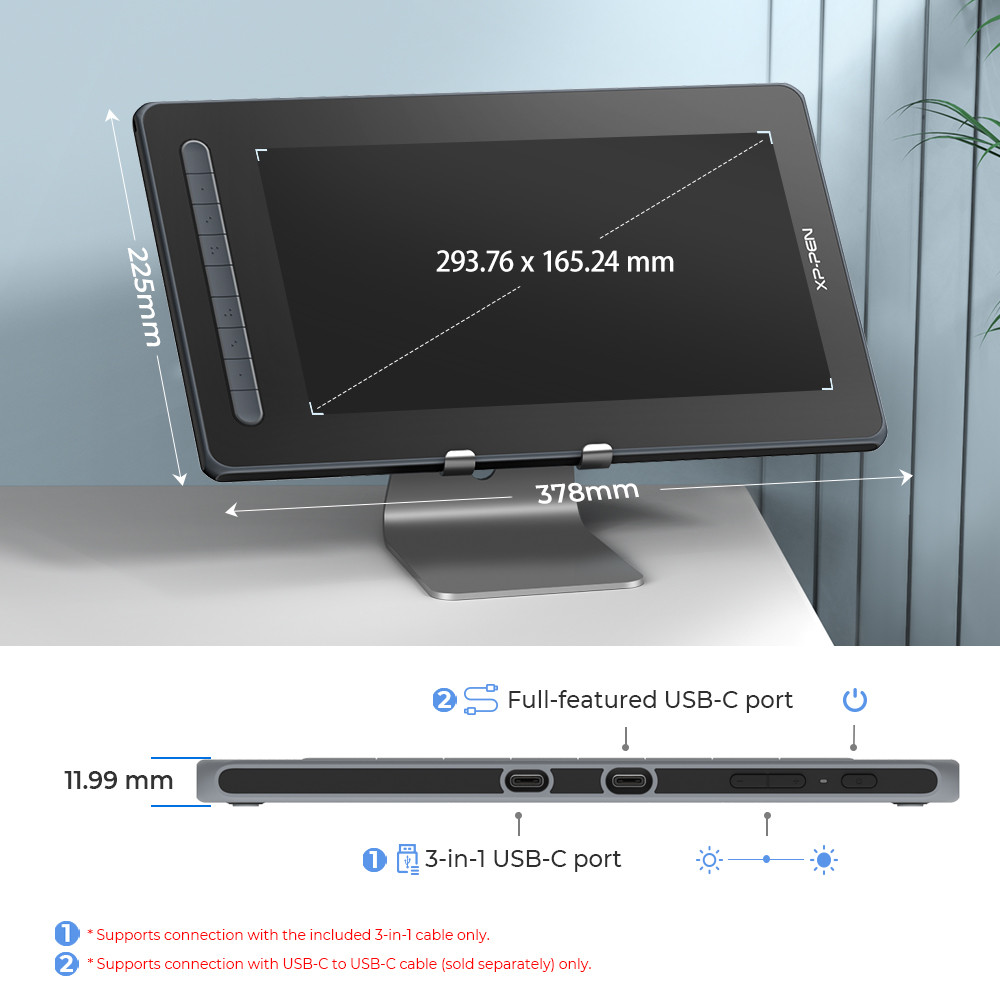

| Dimensions | 378 x 225 x 11.99 mm |
| Work Area | 293.76 x 165.24 mm |
| Reading Height | 10mm |
| Shortcut Keys | 9 |
| Display Resolution | 1920 x 1080 |
| Color Gamut (typical) | 92% NTSC，130% sRGB，96% Adobe RGB |
| Contrast (typical) | 1000:1 |
| Full Lamination | Yes |
| Viewing Angle | 178° |
| Stylus | X3 Elite |
| Pressure Levels | 8192 |
| Tilt | 60° |
| Resolution | 5080 LPI |
| Accuracy | ±0.5 mm (center), ±1 mm (corner) |
| Ports Included | 2 x USB-C |
| Power Input | DC 5V⎓2A |
| Compatibility | Windows 7 (or later), macOS 10.10 (or later), Chrome OS 88 (or later), Android USB3.1 DP1.2, Linux |
| Certifications |
CE/WEEE/NOM/RCM/EAC/FCC/KC/RoHS/PSE/BIS/UKCA |
Package Includes：
1 x Pen Display
1 x X3 Elite Stylus
1 x 3-in-1 USB Cable
1 x USB Extension Cable
10 x Nibs
1 x Nib Extractor
1 x Cleaning Cloth
1 x Black Drawing Glove
1 x Quick Guide
1 x Warranty Card
